Overview

A Robomate is a two-wheeled inverted pendulum — without active control it falls over instantly. The firmware runs two cascaded PID controllers at high frequency to keep the robot balanced while following the driver's commands. The motors are driven in torque mode using SimpleFOC field-oriented control.

What We Control

The most important design decision is what to control. We don't control the tilt angle or motor torque directly — we control velocity.

When the driver gives no input, the target velocity is zero and the robot should stand still. But standing still doesn't necessarily mean zero tilt — the robot may lean slightly to maintain balance depending on its centre of gravity. By targeting velocity rather than angle, the system naturally finds the right posture on its own.

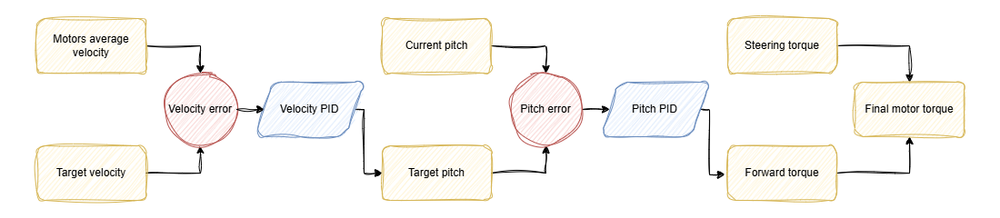

PID Control Diagram

Velocity PID

The outer loop compares the target velocity (from the driver's joystick or zero when idle) with the actual velocity (averaged between both motors). The difference is the velocity error.

The Velocity PID controller processes this error and outputs a target pitch angle — the tilt the robot should hold in order to reach the requested speed.

Example: If the driver pushes the joystick fully forward, the Velocity PID will output a forward-leaning target pitch. The robot tilts forward and accelerates. When the driver lets go, the target velocity returns to zero and the robot straightens up to slow down.

Pitch PID

The inner loop compares the target pitch (output from the Velocity PID) with the current pitch (measured by the MPU6050 IMU). The difference is the pitch error.

The Pitch PID controller processes this error and outputs the forward torque needed to correct the tilt. Since the SimpleFOC motor controller is set to torque mode, this value goes directly to the motors.

Steering

Balancing handles forward and backward movement. To steer left or right, a steering torque is added to one motor and subtracted from the other. The final torque sent to each motor is:

Motor	Torque
Left	Forward torque + Steering torque
Right	Forward torque − Steering torque

This differential drive approach lets the robot spin on the spot or take wide turns depending on how much steering input is applied.

PID Tuning

The firmware ships with default PID values that work well for a standard Robomate build. These can be adjusted via the configuration to account for different top shells, battery weights, or surface conditions.

A few things worth noting about the default tuning:

Integral term Set to zero in both PIDs — the robot doesn't accumulate error over time, which avoids wind-up and keeps response snappy

Speed limit The system should avoid pushing motors to maximum RPM — at full speed the robot loses the ability to correct balance because there's no headroom to accelerate further

Summary

Stage	Input	Output
Velocity PID	Target velocity vs. actual velocity	Target pitch
Pitch PID	Target pitch vs. current pitch (IMU)	Forward torque
Steering mix	Forward torque ± steering torque	Final motor torques
SimpleFOC	Torque command per motor	Phase currents to BLDC windings
